Sewer Pipe Lining in Wheaton

Sewer pipe lining in Wheaton — also called cured-in-place pipe (CIPP) lining — lets you rebuild an aging or leaking sewer line from the inside out. Pipe lining creates a seamless, jointless, hardened pipe right inside the old clay pipe, sealing off future root entry and stopping leaks without heavy digging.

What is a pipe liner and how is it put in?

A pipe liner is a flexible felt tube soaked in a two-part resin. First the crew cleans the inside of your sewer line with high-pressure water cleaning (also called hydro jetting) or mechanical root cutters to strip out scale, grease, and root masses.

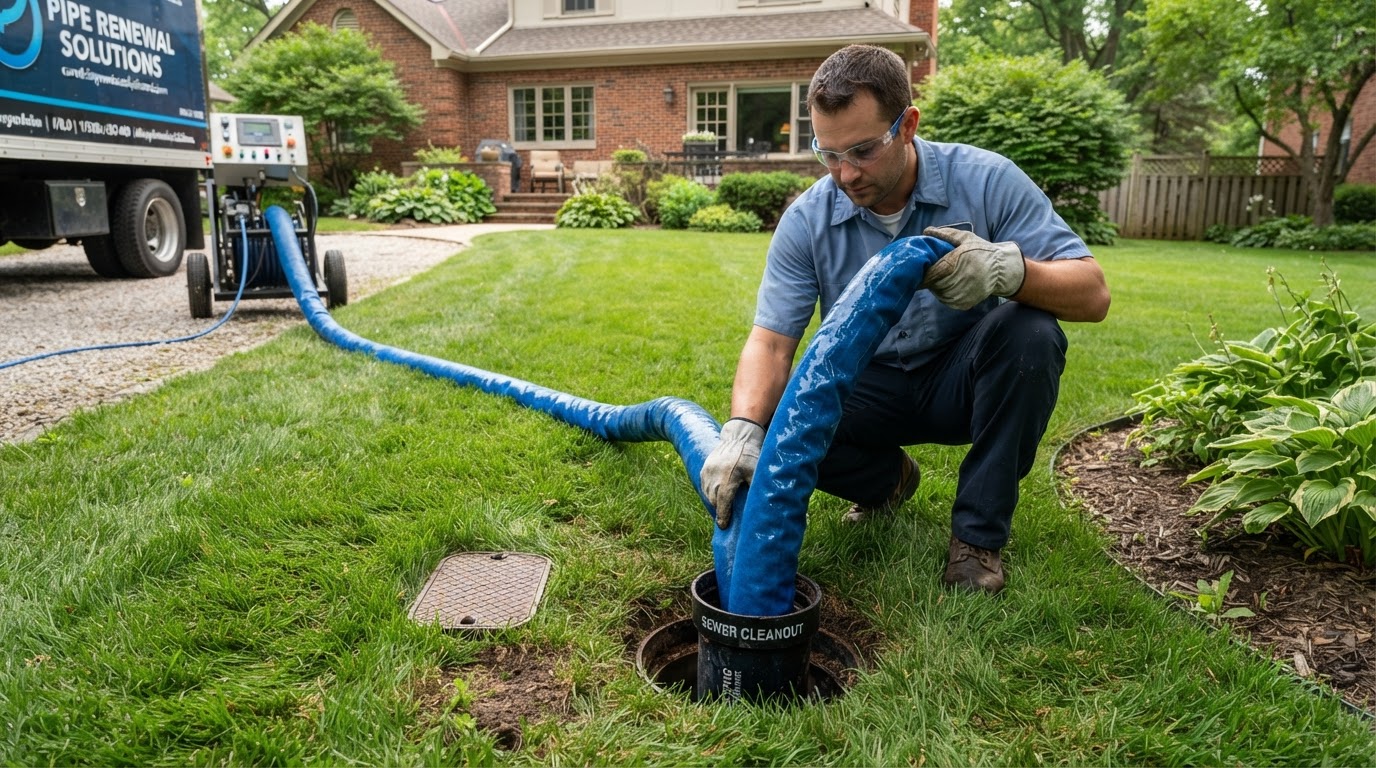

Once the old pipe is clean, the resin-soaked liner is fed into the sewer line through an outside cleanout or basement entry using compressed air or water pressure. The pressure presses the wet liner tight against the inside walls of the old pipe. Steam or hot water is then run through the tube, which hardens the resin into a smooth, solid pipe in a few hours. Once cured, the liner works as a standalone pipe designed to last more than 50 years.

Why a sagging or collapsed line can't be lined

Pipe lining is a great fix for many aging clay lines, but it's not a cure for every failed sewer line. The liner takes on the exact shape and slope of the old pipe. So pipe lining needs an intact, round pipe with the right slope.

If your line has a sag where water sits — a sunken section that collects standing water and solids because the soil settled — lining it only coats the sunken shape. The liner won't lift the pipe or bring back the right slope. Same goes if the clay has crushed or fully collapsed: the liner tube can't pass through or open up. In those cases a local contractor has to dig up that stretch for a spot repair, or recommend trenchless replacement or digging a trench.

When pipe lining is the right call vs. trenchless replacement

Choosing between pipe lining and trenchless replacement comes down to the shape of the old pipe and what you can get to:

• Choose pipe lining when: The old clay pipe is still round, has good slope, but has leaking joints or heavy root intrusion. Lining needs no digging if there's a usable cleanout, making it the least invasive option.
• Choose trenchless replacement when: The old pipe is badly cracked, the sections have shifted apart, it's slightly deformed, or you want to go from a 4-inch to a 6-inch pipe to handle modern fixtures.

Pipe lining cost range in Wheaton

In Wheaton, residential pipe lining typically runs between $5,000 and $12,000 depending on the length of the line, the pipe size, what access is available, and how much cleaning it needs first. Pipe lining on a private line may be eligible for partial funding under the Sanitary Sewer Service Line Reimbursement Program — confirm current terms on the official City of Wheaton Sewer Reimbursement Programs page and check eligibility with Wheaton Public Works.

What happens when you call?

Call 630-228-9042 anytime to reach an automated assistant 24/7. Your details go straight to a local sewer contractor who handles pipe lining. The contractor calls you back to run a camera through the line and give you an upfront written cost estimate.
